Five 490 × 1040 mm sheets, each driven by a single PXS128, cover 1040 × 2480 mm with 20,480 points. The point count and the sheet layout are identical to Config B — what changes is the hardware at the end of each sheet: five collectors instead of ten, and half the ports at the docking hub.
Choose this when cable routing and hub space, not point count, is the constraint. Choose Config B when the compact collectors are easier to fit around the fixture.
- —5 × 490 × 1040 mm sheets (active 487 × 1034 mm)
- —5 × PXS128, one per long sheet
- —20,480 points over 1040 × 2480 mm
- —Half the devices and hub ports of Config B
Prices are quoted per configuration; no list prices are published.

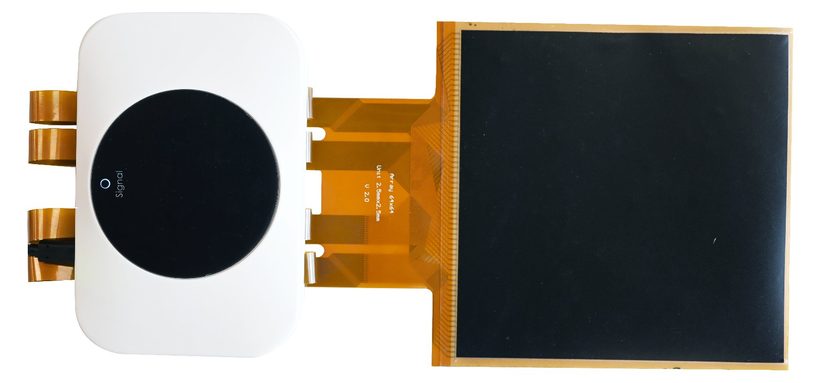

Parts it is specified with
Film, collectors and software are quoted as one chain — the sheet count follows the surface size.
Real projects, without the names
Configuration, method and finding are published as delivered. Client identity stays with the customer — that is the only way these records get approved at all.
20,480 points across a 2.5 m² blade panel
Five long sheets and ten compact collectors merged into one continuous map over 1040 × 2480 mm, then compared against the aerodynamic model.
Bond-line pressure during spar cap bonding
Adhesive pressure mapped along the bond line before cure, replacing a trial-and-error shim routine.
Press platen uniformity before a curing change
40,960 points across ten sheets measured platen flatness under load, so the process change was decided on data rather than a sample.
The measurements this part is specified for
The rest of the range
4096-point sensing film
Sensing principle: Piezoresistive · Thickness: 0.3 mm
Compact 4096-point collector
Model: PXS064mini · Dimensions: 90 × 40 mm
Large-format collector
Model: PXS128 · Dimensions: 180 × 180 mm
One session, all sheets
Platform: Windows desktop application · Input: Multiple collectors via docking hub
Config A — 40,960 points
Sensing sheets: 10 × 490 × 520 mm · Collectors: 10 × PXS064mini
Config B — 20,480 points
Sensing sheets: 5 × 490 × 1040 mm (active 487 × 1034 mm) · Collectors: 10 × PXS064mini (two per long sheet)
