Calibration values are stored per sheet, so replacing a damaged sheet does not require recalibrating the whole build.
- —All sheets in one window
- —Per-sheet calibration
- —CSV export for external analysis
- —No cloud dependency
Prices are quoted per configuration; no list prices are published.
Parts it is specified with

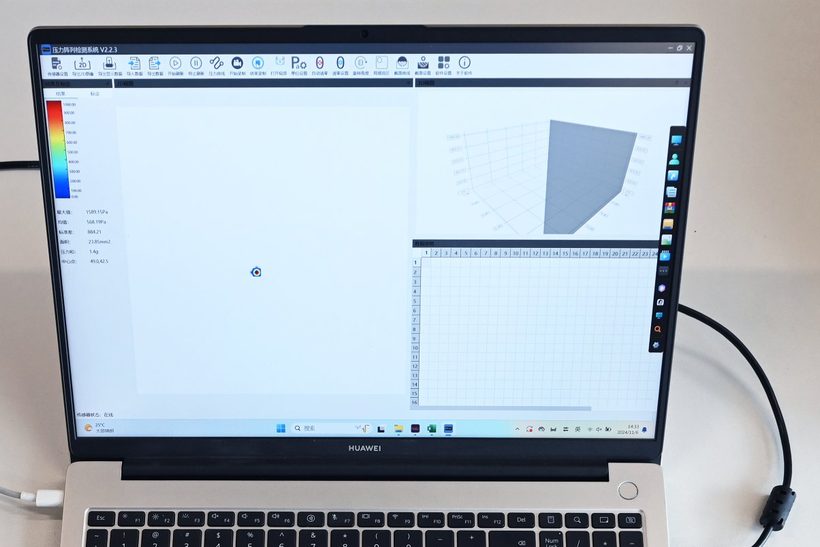

Film, collectors and software are quoted as one chain — the sheet count follows the surface size.
Real projects, without the names
Configuration, method and finding are published as delivered. Client identity stays with the customer — that is the only way these records get approved at all.
20,480 points across a 2.5 m² blade panel
Five long sheets and ten compact collectors merged into one continuous map over 1040 × 2480 mm, then compared against the aerodynamic model.
Bond-line pressure during spar cap bonding
Adhesive pressure mapped along the bond line before cure, replacing a trial-and-error shim routine.
Press platen uniformity before a curing change
40,960 points across ten sheets measured platen flatness under load, so the process change was decided on data rather than a sample.
Why it is specified this way
Selection notes and field measurements from our own test work.
Bonding a sensing film to a blade surface: what actually fails
Most measurement errors on a blade do not come from the sensor — they come from the bond. Here a
Is 20 Hz enough for blade pressure measurement?
A 20 Hz sampling rate rules out vibration and transient work — and that is exactly why it is the
Choosing a flexible sensing film: range, array density and encapsulation
Three parameters constrain each other. Range headroom, array density and encapsulation are usual
The measurements this part is specified for
Blade surface pressure mapping
A strain gauge tells you the load arrived. It cannot tell you where it concentrated, or whether the peak on…
Bond-line pressure, read before cure
A press reporting the correct total force can still leave half a bond line starved. The number that matters…
Contact pressure across a bolted joint
Torque is an input, not a result. Two joints tightened to the same torque can carry very different pressure…
The rest of the range
4096-point sensing film
Sensing principle: Piezoresistive · Thickness: 0.3 mm
Compact 4096-point collector
Model: PXS064mini · Dimensions: 90 × 40 mm
Large-format collector
Model: PXS128 · Dimensions: 180 × 180 mm
Config A — 40,960 points
Sensing sheets: 10 × 490 × 520 mm · Collectors: 10 × PXS064mini
Config B — 20,480 points
Sensing sheets: 5 × 490 × 1040 mm (active 487 × 1034 mm) · Collectors: 10 × PXS064mini (two per long sheet)
Config C — 20,480 points
Sensing sheets: 5 × 490 × 1040 mm (active 487 × 1034 mm) · Collectors: 5 × PXS128 (one per long sheet)
